THE SPECIFICS
Performance
100 cpsi cat version, 14hp increase at 8500rpm, and 26nm at 4100rpm
De-cat version, 22hp increase at 8500rpm, and 32nm at 4100rpm

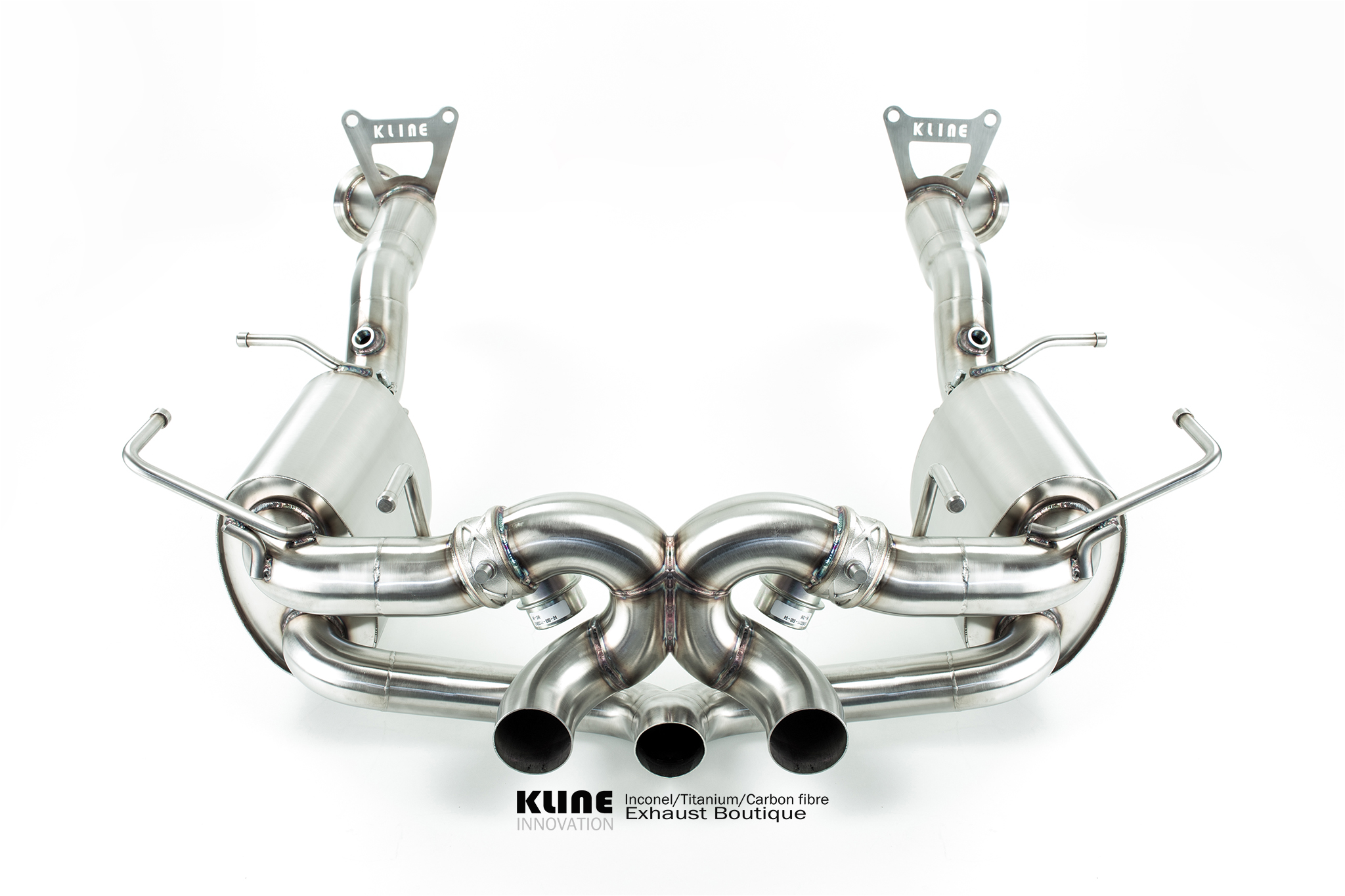

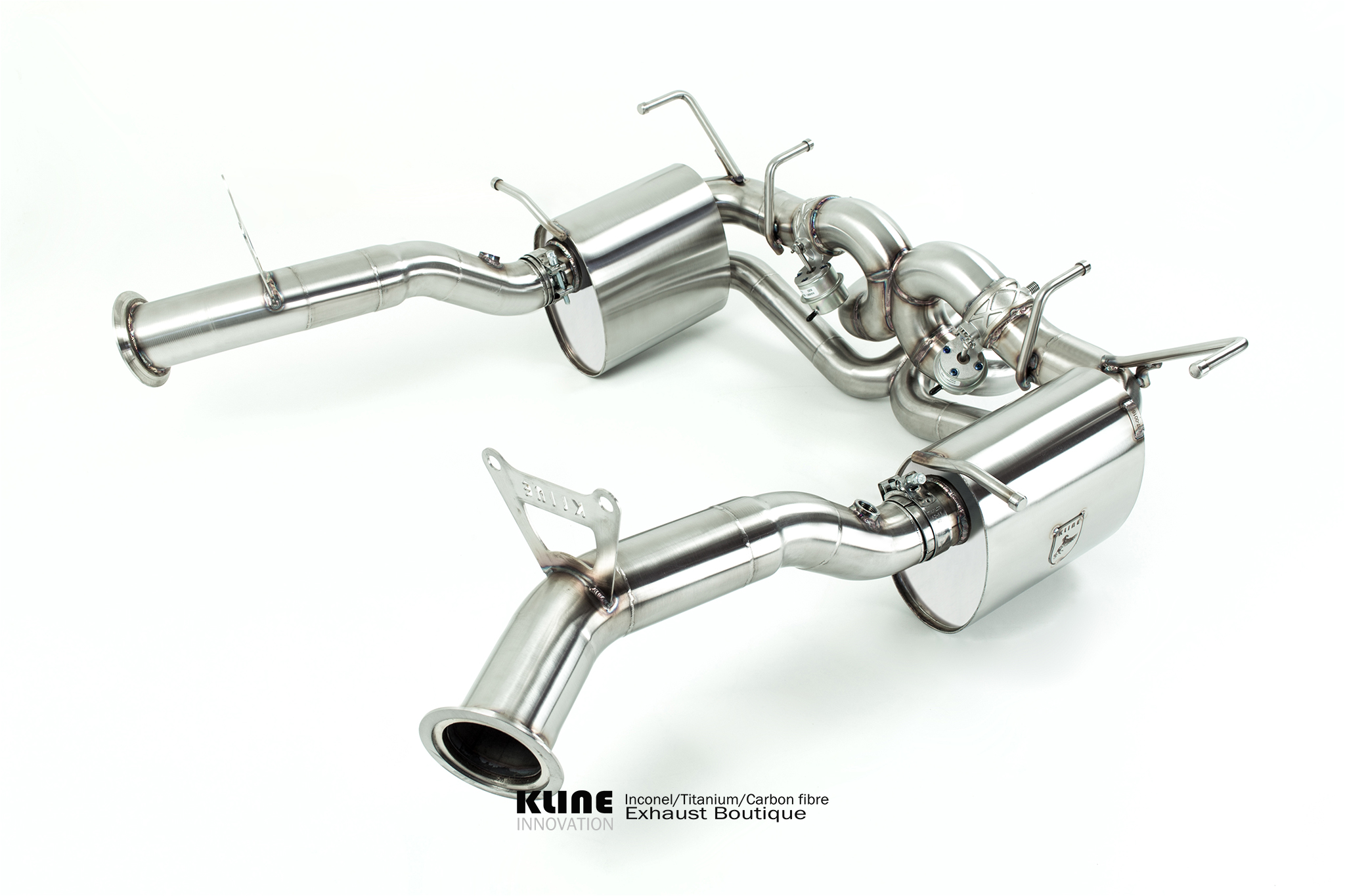

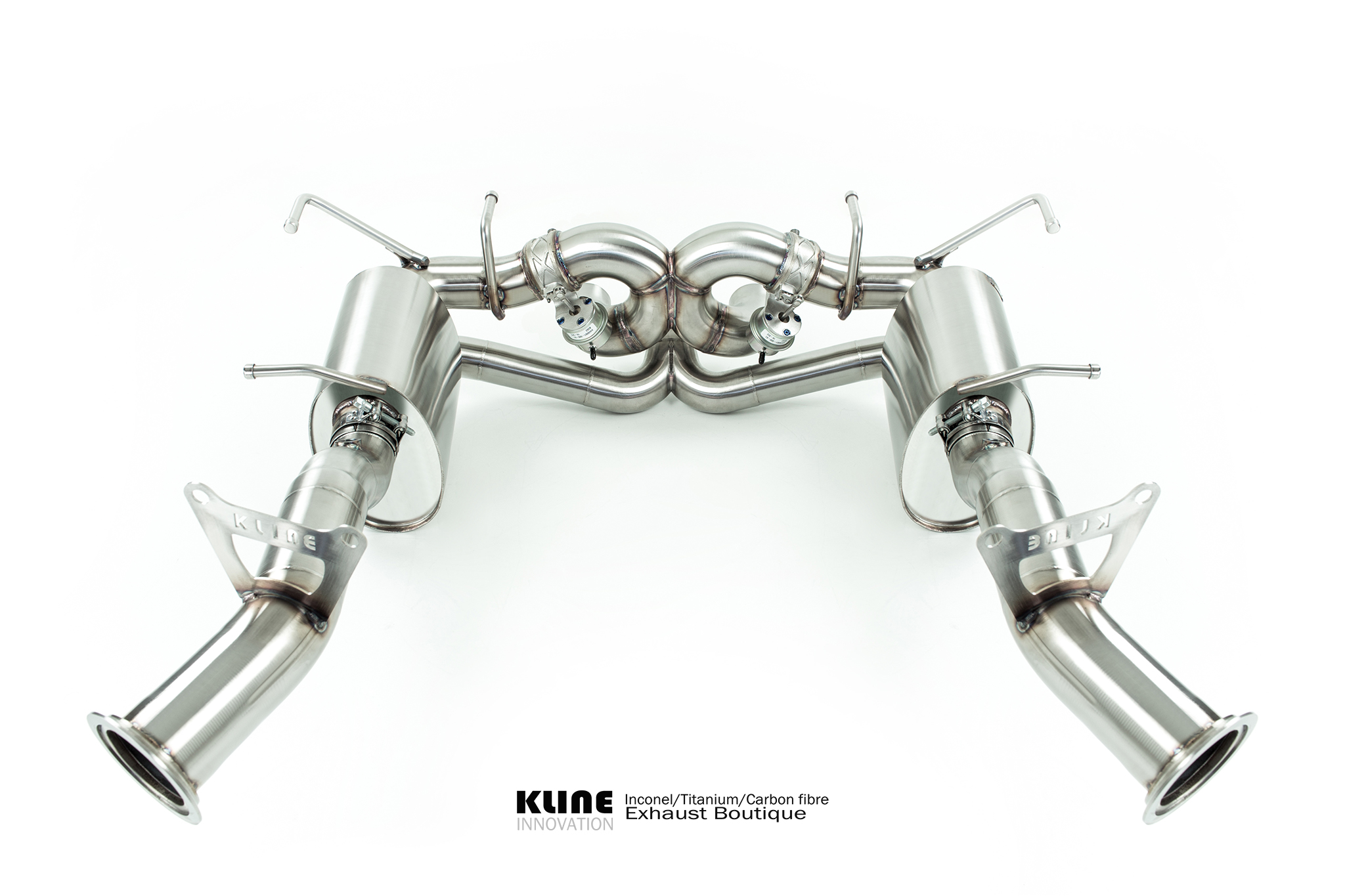

Cross Section
Catalyst/De-cat section tubing, dual 63.5mm OD, chosen for a balance of torque and peak power. catalysts, available in 100cpsi 124mm billet, HJS race catalysts, or de-cat variation for more aggressive sound, and ultimate performance.

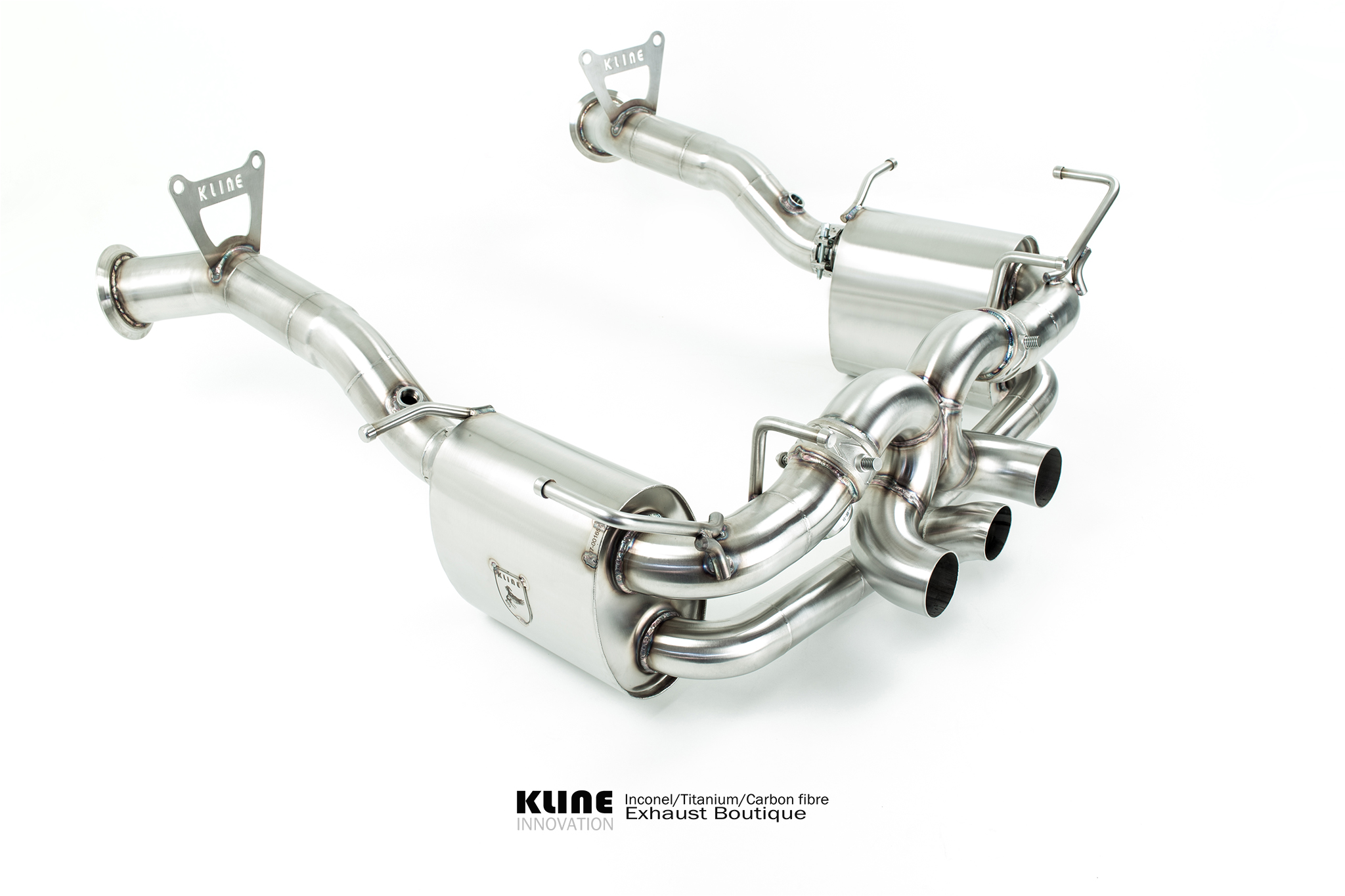

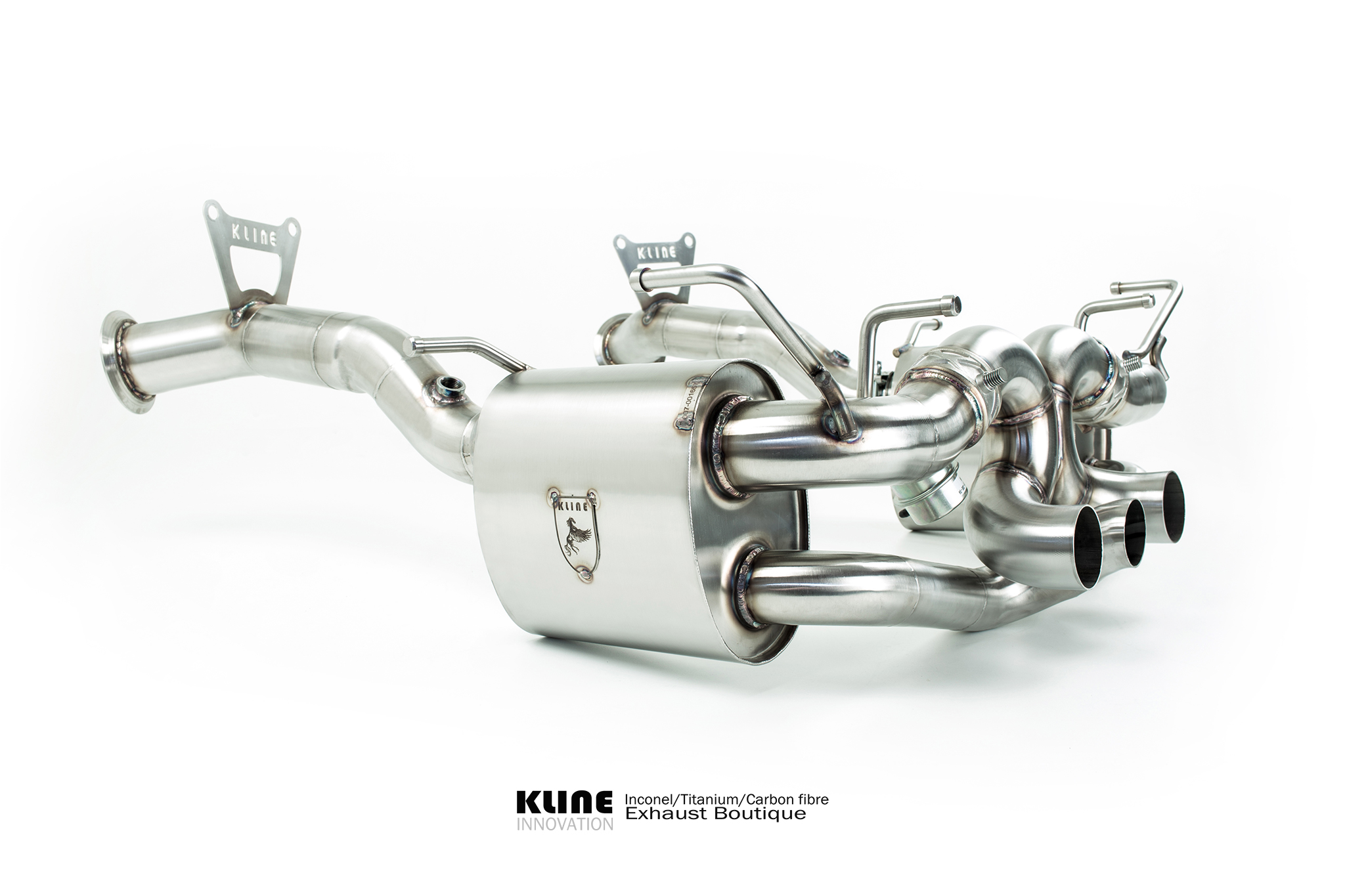

silencer section tubing, dual 63.5mm on valve open, single 50mm on valve close.

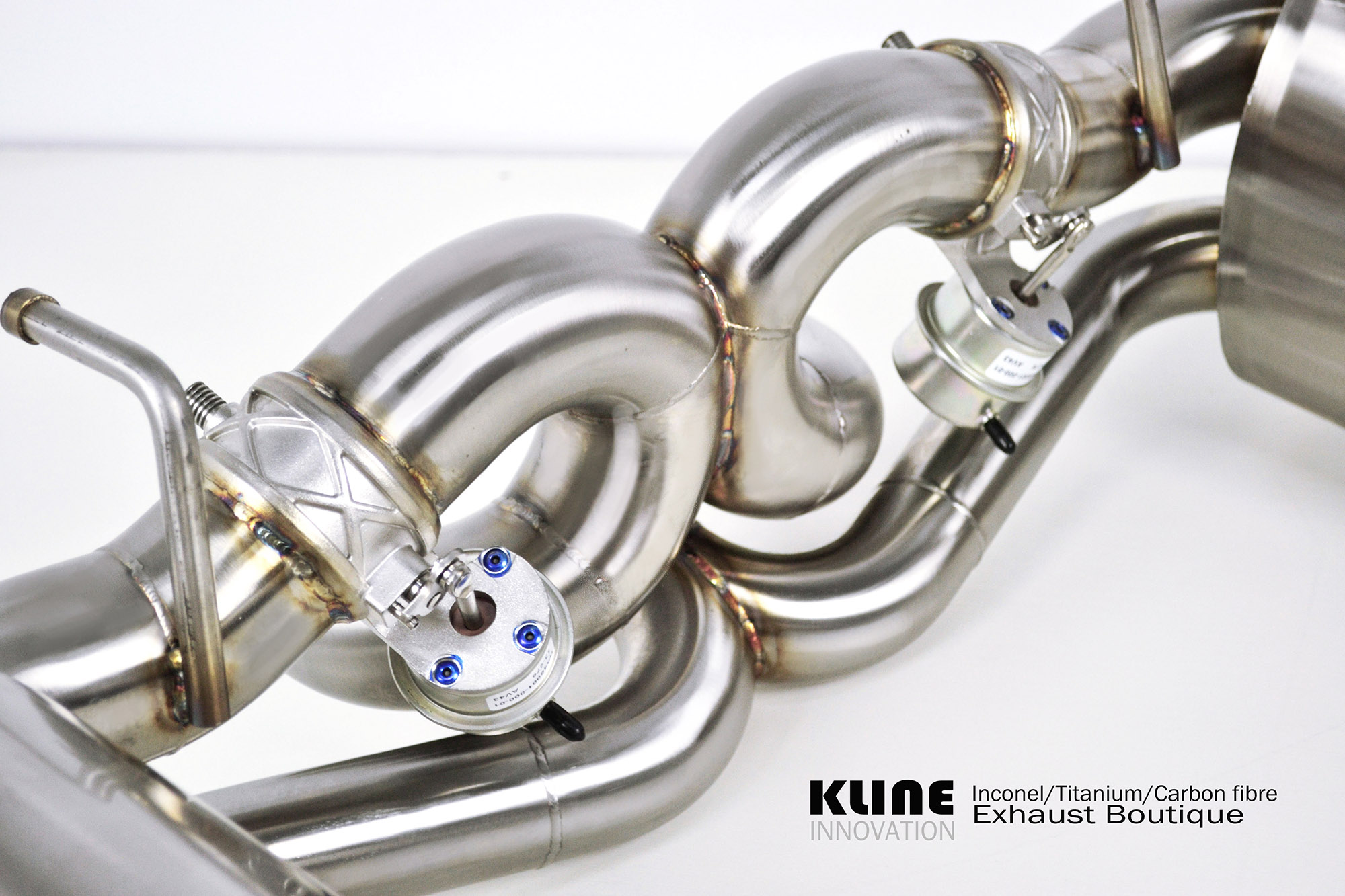

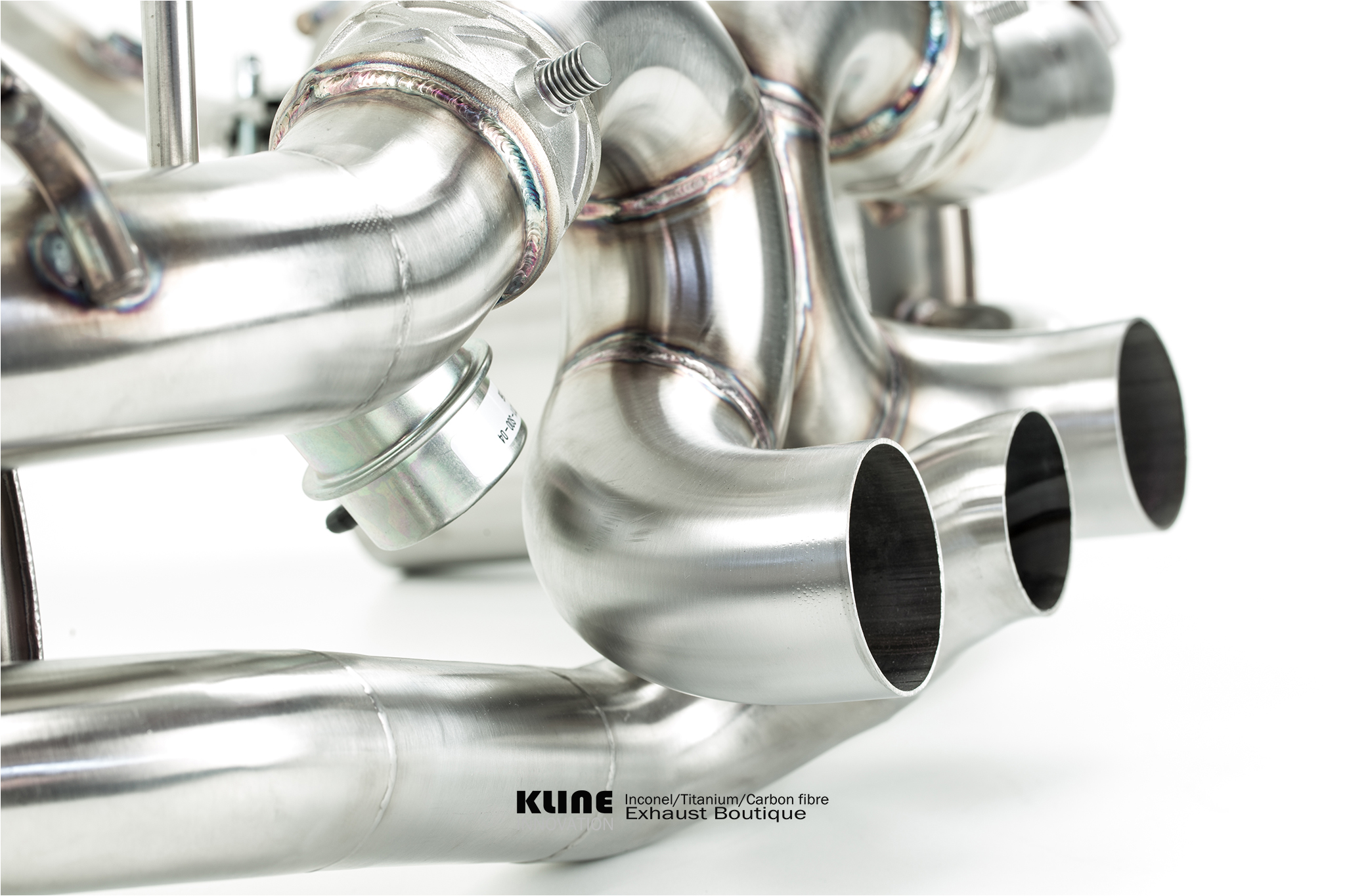

63.5mm 1D CLR laminar flow x pipe.

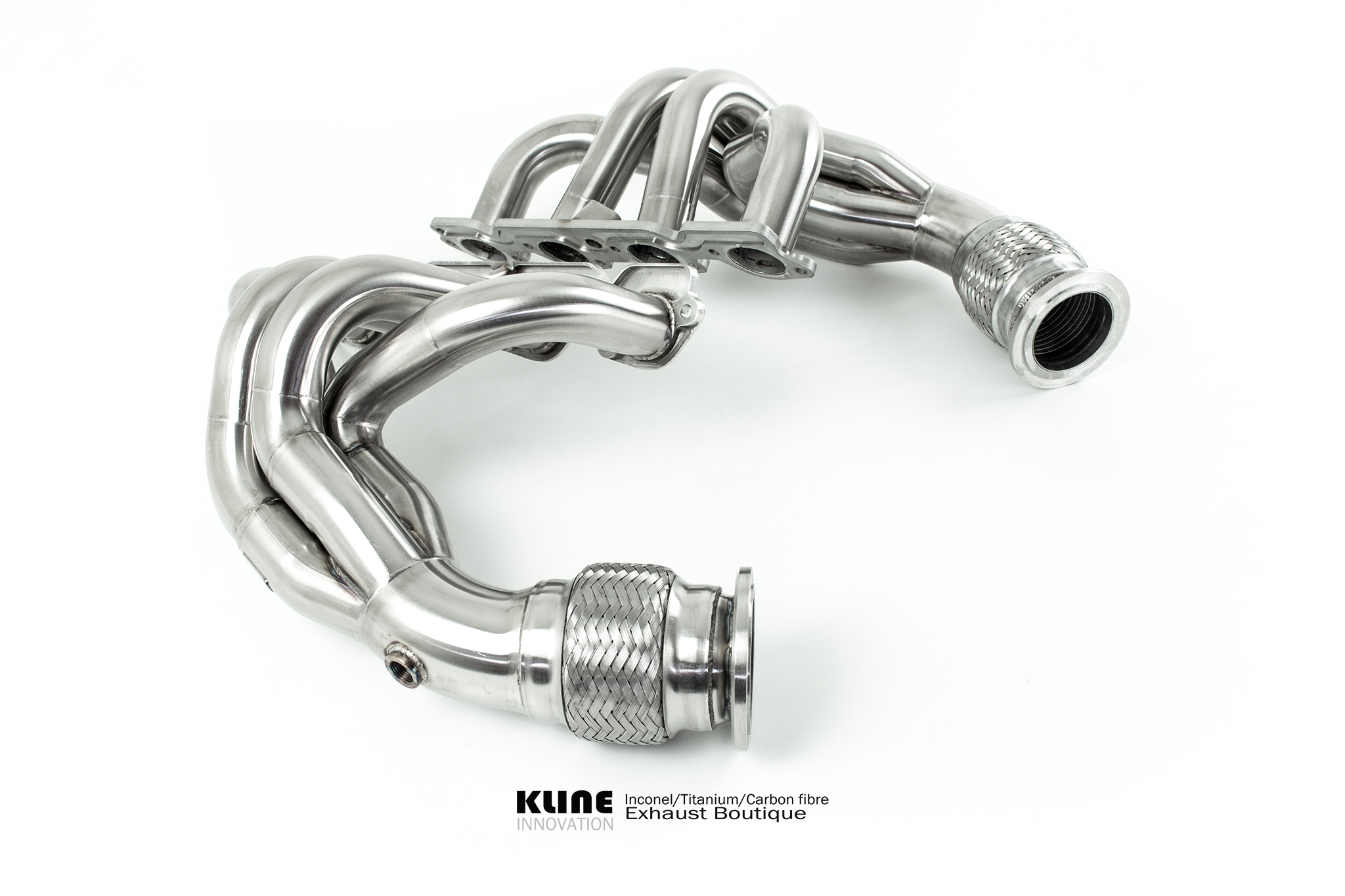

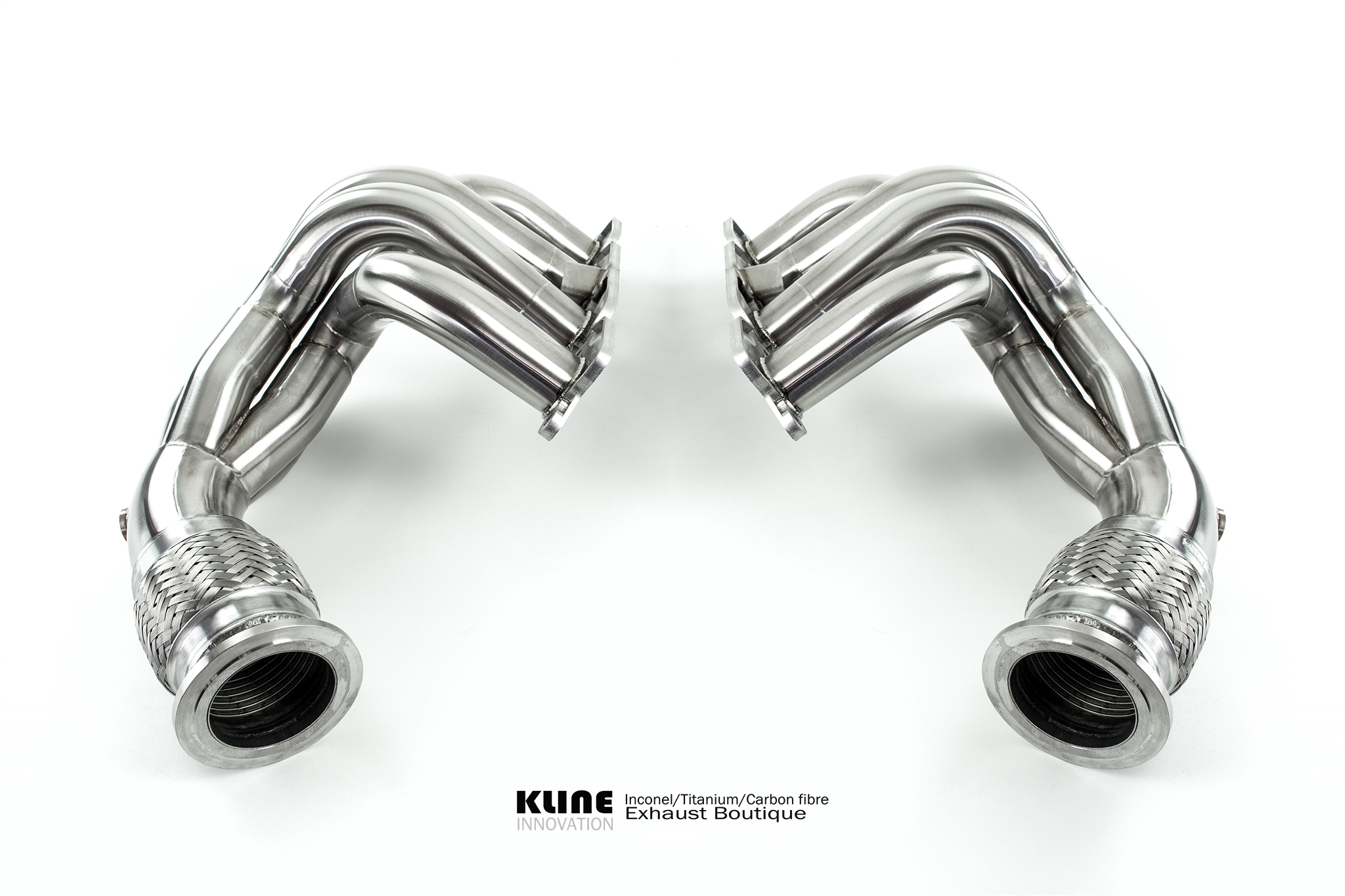

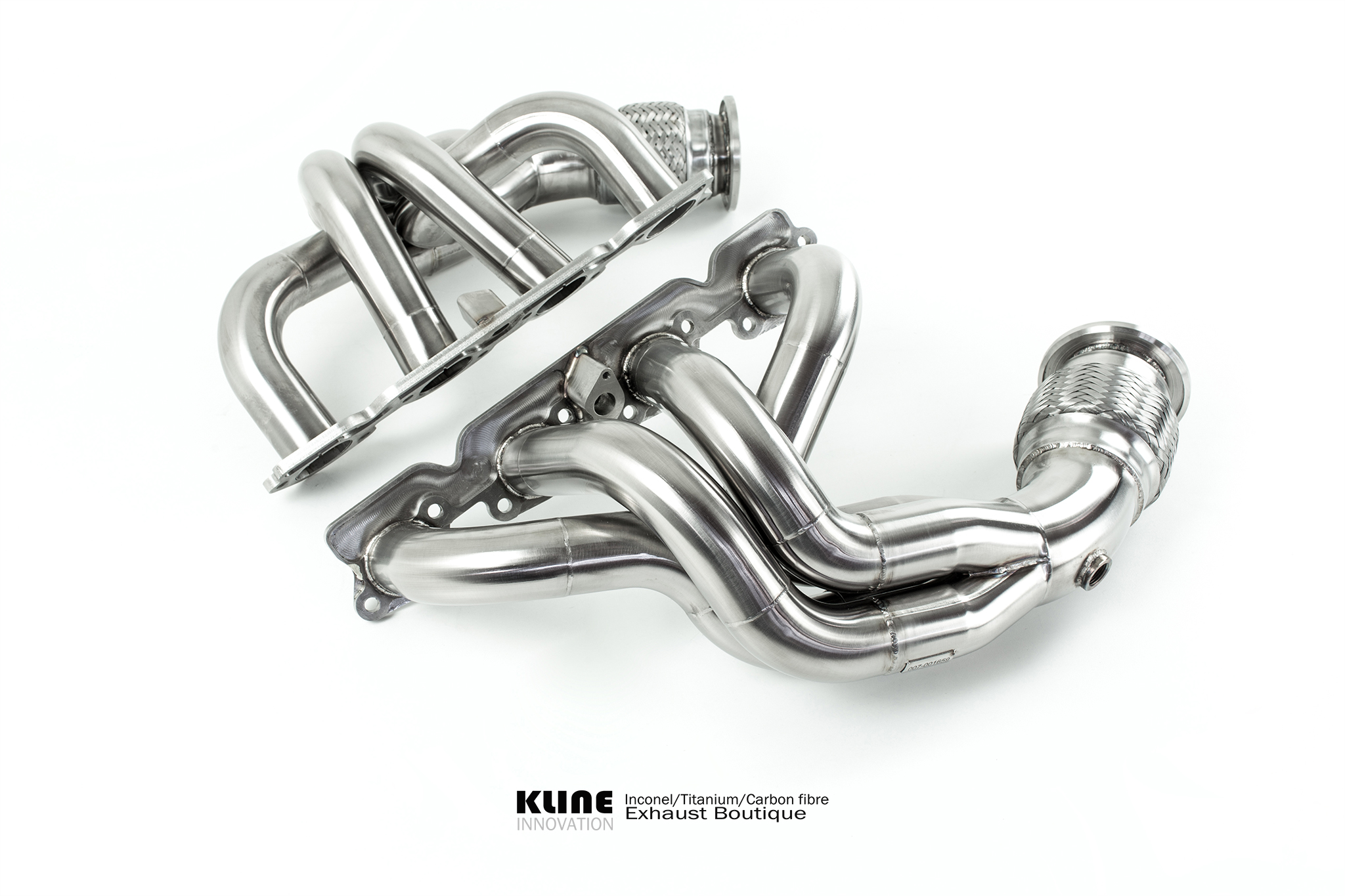

Coming soon, manifolds. primaries 45mm, 63.5mm post collector, with formula one grade true merge collectors. Primary lengths yet to be released.
Materials
Available in full Inconel 625 (formula one grade) material. Weight valvetronic silencer section 6kg. De-cat pipes 1.0kg each, catalyst pipes 3.8kg each.
weight saving 24.4kg (De-cat), 20.2kg (100cpsi cat)
Also available in 304 stainless. Weight valvetronic silencer section 13kg. De-cat pipes 3.0kg, catalyst pipes, 4.5 kg.
Manifolds will shortly be available exclusively in inconel 625. ultra light weight, and the best listed performance figures to be announced
Catalyst
100 cell HJS catalysts come as standard.
Decat pipes are also available for optimum performance, and a more aggressive sound
